In the course of web development, one frequently encounters encoding schemes such as Base64. Until recently, I had merely conceptualized it as a standard for encoding binary data, but upon investigation, the subject proves remarkably intriguing. This exposition examines the fundamental nature of character encoding, the nomenclature conventions for base-N encoding systems, and the distinguishing characteristics among various standards including Base64, Base62, Base32, and Base16.

Character Encoding

  • Encoding constitutes the transformation of human-comprehensible data such as textual characters and visual representations into computational signals (sequences of 0 and 1).
  • Character encoding specifically addresses the conversion of textual data into computational signals
  • Representative character encoding methodologies:

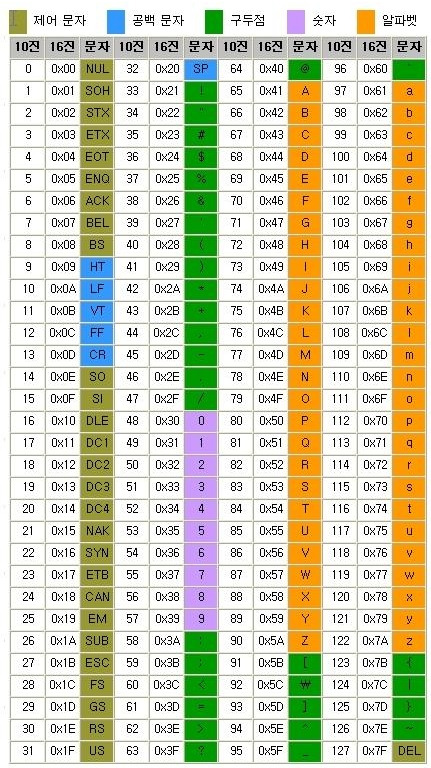

    • ASCII (American Standard Code for Information Interchange)

      • The inaugural standard for textual representation in computing systems (established 1963)
      • Encompasses exclusively alphabetic characters and select special characters


    • Unicode

      • A comprehensive standard enabling consistent representation of all global writing systems within computational environments
      • Achieves unification of previously incompatible character encoding methodologies
      • UTF encoding and UCS encoding constitute transformation methodologies for Unicode, with UTF-8 representing one of the most prevalent implementations
  • For comprehensive exposition regarding character encoding varieties and historical development, consult the Wikipedia reference

Binary-to-Text Encoding: Fundamental Concepts

  • The process of encoding binary data into printable character strings
  • Email systems exemplify principal applications, wherein the SMTP protocol transmits data through text-based mechanisms. The protocol specification mandates 7-bit ASCII transmission, whereas contemporary computational systems predominantly store data in 8-bit (byte) memory structures. Binary-to-text encoding becomes essential for lossless transmission of non-English languages utilizing more than 8 bits, as well as graphical, audio, and video content.

Let us examine the most prevalent binary-to-text encoding methodologies, proceeding from Base64 through Base32, Base16, Base62, and Base58.

Base64

  • Base-N denotes N-ary numeral systems; consequently, Base64 represents a sexagesimal (64-ary) system. This encoding methodology transforms 8-bit binary data into character strings composed exclusively of ASCII characters unaffected by character code variations. (Source: Wikipedia)

    • The proliferation of diverse character encoding standards (ISO-8859, Unicode, et cetera) arose from the necessity to accommodate global writing systems, yet each possesses distinct character coverage… Ultimately, representation independent of character codes necessitates conversion to ASCII.

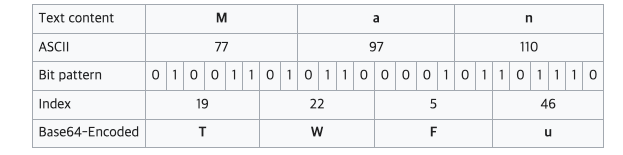

    • The methodology partitions 24 bits (three 8-bit segments) into four 6-bit segments. (2^6 = 64)


    • Composition: A-Z, a-z, 0-9 (62 characters total) plus the symbols “+” and “/” = 64 characters (with “=” serving as a termination indicator)
      • Decimal: “1234567890”
      • Hexadecimal: “1234567890abcdef”
      • Sexagesimal: “ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789+/”
      • → Base64 represents the maximum radix expressible using printable ASCII characters (excluding control characters). The total printable ASCII character set comprises fewer than 128 characters.
    • However, the standard Base64 definition includes characters incompatible with URL specifications.
    • (Referencing RFC 3986): “+” and “/” constitute reserved characters
    • → “URL and Filename Safe” Base64 variant addresses this limitation (also defined in RFC documentation)
      • Substitutes “-” and “_” for “+” and “/”

Base64 Encoding Methodology

  • During conversion, data rarely aligns perfectly with 24-bit boundaries. Padding mechanisms accommodate this constraint.

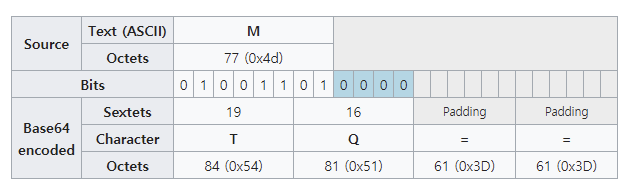

base64-2

  • Vacant positions are populated with zeros, while entirely absent bit positions utilize the padding character “=”.
  • → Encoding results in approximately 4/3 size expansion relative to the original data.
  • Note:
    • An octet comprises eight bits. While typically equivalent to one byte, early computing systems did not uniformly define bytes as 8-bit units; hence, the term “octet” was coined to unambiguously specify 8-bit groupings.

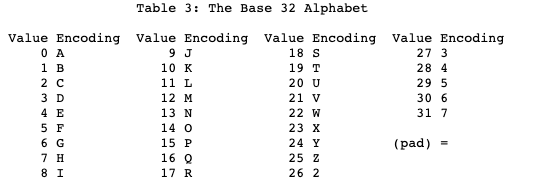

Base32

  • A 32-ary numeral representation. Employs 5-bit character set notation
  • Advantages compared to Base64:
    • Beneficial for case-insensitive file systems, DNS nomenclature, and vocal communication
    • Excludes the Unix path separator (’/’), enabling usage in filenames
    • Avoids character pairs visually similar to humans (omits 1, 8, 0 which may be confused with I, B, O)
  • Disadvantages compared to Base64:
    • Occupies 20% additional storage capacity

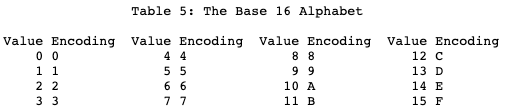

Base16 (Hexadecimal)

  • A 16-ary numeral representation
    • Converts 8-bit octets (1 byte) into two 4-bit characters (2 bytes)
  • Advantages:
    • Most programming languages possess inherent functionality for parsing ASCII-encoded hexadecimal notation
    • Unlike Base32 and Base64, requires no padding (being precisely half of an 8-bit byte)
    • Hexadecimal notation enjoys widespread usage, enabling immediate comprehension without reference tables
  • Disadvantages:
    • Space efficiency degrades to 50%


Base62

  • A variant of Base64 excluding special characters, comprising exclusively A-Z, a-z, 0-9
  • Addresses scenarios necessitating special character substitution (URLs representing a prominent example)

Base58Check

  • A Base64 derivative eliminating visually ambiguous characters (0, O, I, l) and special symbols (+, /)
  • Developed for Bitcoin address representation
    • Character disambiguation prevents Bitcoin accounts from appearing identical visually
    • Alphanumeric-only composition facilitates selection via double-clicking
    • Special characters in email contexts occasionally trigger line breaks
  • Incorporates four bytes (32 bits) of SHA256-based error-checking code for invalid address detection
  • Being non-power-of-two, proves more suitable for integer encoding than binary encoding
    • Bitcoin addresses constitute 25-byte (200-bit) numerals, representable as 35 characters in Base58 drawing
